The Ultimate Guide to Raised Pavement Markers: Types, Benefits & Installation

What are Raised Pavement Markers and how do they boost road safety?

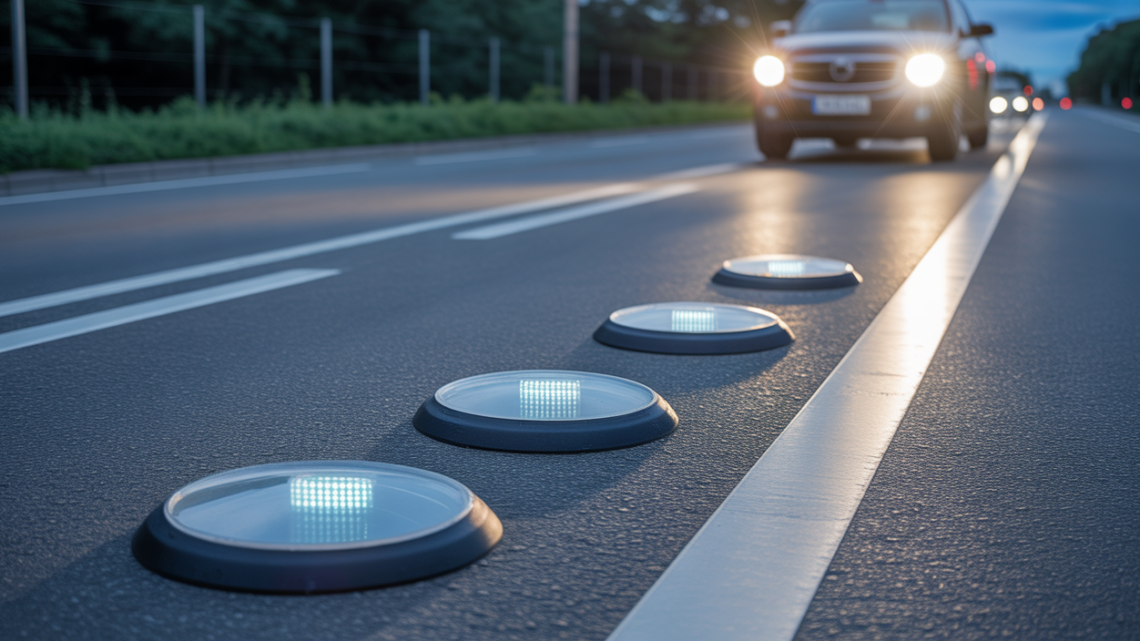

When you drive at night or in heavy rain, those bright little “studs” that outline the lane keep you safely in line. These are called Raised Pavement Markers. They sit slightly above the road surface, reflect light from headlights, and give a clear visual guide even when painted lines fade.

For road agencies, contractors, and parking-lot owners, these small devices play a very big role. They improve night visibility, reduce lane-change confusion, and help drivers react faster. With the right traffic safety studs, you can upgrade a road’s safety level without rebuilding the entire surface.

This guide walks you through what they are, different types, how to choose the right ones, and how to install them correctly so they last.

What Are Raised Pavement Markers?

Raised pavement markers are small, durable road studs fixed on the surface of a road or parking area. They act as “3D lane markers” and are often used along center lines, edge lines, and turning lanes. Many people also call them reflective road studs, reflective cat eyes, or roadway delineation markers.

There are two common visibility designs:

• One-way markers: Reflective on one side only, used so the reflection is seen by traffic moving in a single direction.
• Two-way markers: Reflective on two opposite sides, used where traffic moves in both directions.

The choice between one-way and two-way mainly depends on lane direction and your specific traffic pattern.

Materials & Types Explained

Ceramic vs Polymer vs Thermoplastic Road Studs

Not all pavement marking studs are made the same way. The three broad material types you will see are:

• Ceramic markers: Traditional and strong in compression. They work well in moderate climates but can chip under very heavy truck traffic or repeated freeze–thaw cycles.
• High-impact polymer markers: These are plastic-based, flexible, and highly durable. Good polymer designs handle heavy loads, resist cracking, and keep reflectors firmly in place.
• Thermoplastic studs: These bond closely with thermoplastic road markings. They offer good visibility and are useful when you want both lines and studs to be part of a single system.

For busy highways, long flyovers, and harsh climates, polymer-based reflective pavement markers often give the best balance of lifespan and cost.

Reflective Lens Colours and Their Meaning

Colour is not only about looks. It carries clear meaning for drivers and must follow local standards and traffic codes.

• Yellow (amber): Used for center lines and to separate traffic moving in opposite directions. Yellow one-way markers are common in no-passing zones.
• White: Shows lanes moving in the same direction or marks the right-hand edge in many countries.
• Red: Warns of “wrong way” or restricted areas. When drivers see red reflection, they know they should not travel in that direction.

Before placing any marker, always check your national or state code so your colour scheme stays compliant.

Key Benefits of Using Raised Pavement Markers

High-quality highway road markers give you several strong benefits:

• Superior night-time visibility: Enhanced night-vision markers reflect light directly back to drivers, even when paint is worn, wet, or dirty.
• All-weather performance: Good designs stay visible in rain, fog, and low light, which sharply cuts down lane-departure incidents.
• Durability: Strong bodies and lenses handle heavy traffic, extreme temperatures, and regular road cleaning.
• Cost control: While the upfront cost per unit is higher than paint, longer service life and fewer accidents make them a smart long-term investment.

For city agencies and private road owners, this combination of safety and durability often leads to a strong return on investment.

How to Choose the Right Marker for Your Project

Before ordering traffic safety road studs, think about three main factors: traffic volume, climate, and budget.

• Traffic volume: For national highways and freight corridors, select heavy-duty polymer markers with strong impact and abrasion resistance. For housing societies and small parking lots, a lighter-spec marker may be enough.
• Climate: In regions with strong sunlight, look for UV-resistant bodies and lenses. In cold, hilly areas, choose markers tested for freeze–thaw cycles and snowplow contact.
• Cost vs lifespan: When you compare markers, look at “cost per year” rather than only “cost per box.” A slightly higher price can be justified if lifespan and reflectivity are much better.

Many buyers also prefer trusted 3M pavement markers and similar premium brands for long corridors where maintenance is difficult. For a deeper civil works perspective, you can also check this short guide on steps to follow when trenching, which often connects with utility and road projects.

Step-by-Step Installation Guide

Correct installation is as important as choosing the right product. Poor surface prep or wrong adhesive can cut life by half.

1. Plan the layout
   Mark the exact positions using chalk or paint, following your road design and local standards for spacing.
2. Clean the surface
   Remove dust, loose particles, oil, and moisture. The road must be dry and firm for the adhesive to grip properly.
3. Choose the adhesive
   Cold-set epoxies are easier for small jobs and parking lots. Hot-applied adhesives suit large highway projects and give an excellent bond when applied by trained crews.
4. Apply adhesive
   Put the recommended quantity under the marker base. Do not spread it too thin, and avoid overfilling that makes adhesive squeeze out from the sides.
5. Place and align
   Press the marker firmly onto the surface. Make sure the reflective face points correctly toward traffic flow for one-way markers.
6. Curing time
   Follow the manufacturer’s curing time before opening the lane. This step is critical in cooler or very humid weather.

Regular inspection every few months helps you spot damaged or missing units early and keep the whole guidance system reliable.

Simple Case Study: Safety and ROI

Consider a busy four-lane road entering a city. Earlier it had only painted center lines, and accident reports showed frequent night-time side-swipes. The local authority added a continuous row of bright reflective road studs on the center line and key curves.

Within the first year, night-time lane-change incidents dropped sharply. Maintenance teams reported that, even when paint faded after monsoon, the studs remained clear. The cost of installing a few hundred markers was far lower than the cost of repeated repainting and the indirect social cost of accidents.

Where to Buy and What to Check Before Ordering

When you are ready to buy, look for suppliers that provide clear technical specs, testing data, and support for installation. Check:

• Body material and impact resistance
• Lens material and reflectivity performance
• Recommended adhesive type and installation instructions
• Any available bulk-price slabs for 100-count or larger orders

If you also manage other infrastructure or property assets, you might find it useful to see how professionals handle related jobs such as kitchen plumbing repairs in commercial spaces, because the same “install once, maintain well” mindset applies there too.

FAQs about Raised Pavement Markers

Q1. How long do raised pavement markers usually last?

Service life depends on traffic load, climate, and installation quality. On a busy highway with heavy trucks and strong sun, quality polymer markers can often last several years while keeping good reflectivity. In lighter-traffic areas like industrial campuses or housing societies, they may last even longer.

Q2. Can a small contractor or facility team install these without special machines?

Yes, smaller projects such as parking lots, campus roads, or internal factory lanes can be installed using simple hand tools, correct adhesive, and proper surface cleaning. For major highways or where hot-applied adhesives are used, it is better to work with experienced road crews who follow all safety and traffic-control procedures.

Q3. How do I know which colour and pattern meets my local standards?

Most road authorities publish design manuals that define where to use yellow, white, or red markers, along with spacing rules. Before starting any large project, check these documents or consult a qualified traffic engineer so that your layout follows all applicable codes and safety norms.
